General Specification
♦ Material:
Impeller:PBT UL 94V-0 Reinforced Plastic
Frame:Aluminium Alloy
♦ Lead Wires:UL Type
♦ Motor Protection:Impredance Protect
RED Wire Positive(+)
Black Wire Negative(-)
♦ Insulation Resistance:10MΩ Or Over With a DC250V Megger
♦ Dielectric Withstand Voltage:AC500V 1S
♦ Allowable Ambient Temperature Range:
-10℃～+70℃(Operation)
-40℃～+70℃(Storage)
| 型号 Model |
轴承类型 Bearing Type |
电压 Rated Voltage |
电压范围 Operation Voltage |
电流 Current |
转数 Speed |
风量 Air Flow |

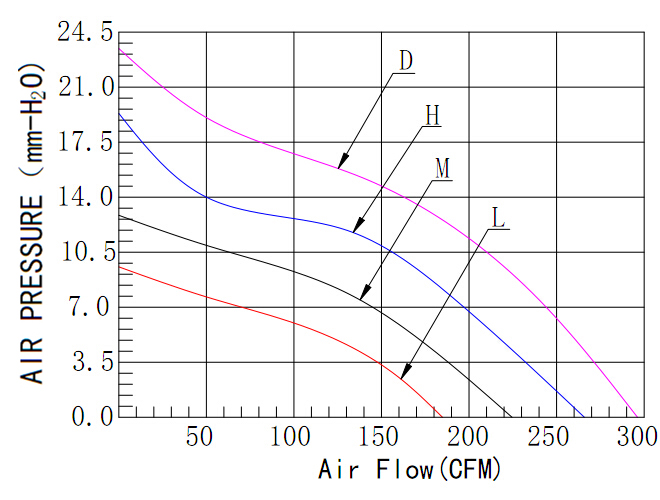

风压 Static Pressure |
噪音 Noise Level |
重量 Weight |
| VDC | VDC | A | RPM | CFM | mmH2O | dBA | G | ||
| ADD17051B | Ball | 24 | 21.6～26.4 | 1.50 | 4000 | 296.00 | 24.04 | 74.40 | 760 |
| ADH17051B | 1.00 | 3600 | 266.00 | 19.48 | 67.00 | ||||
| ADM17051B | 0.60 | 3000 | 222.00 | 13.54 | 55.80 | ||||
| ADL17051B | 0.40 | 2500 | 185.00 | 9.40 | 46.50 | ||||
| ADD17051B | 48 | 43.2～52.8 | 0.80 | 4000 | 296.00 | 24.04 | 74.40 | ||
| ADH17051B | 0.60 | 3600 | 266.00 | 19.48 | 67.00 | ||||
| ADM17051B | 0.35 | 3000 | 222.00 | 13.54 | 55.80 | ||||
| ADL17051B | 0.25 | 2500 | 185.00 | 9.40 | 46.50 |
Notes:1.Specifications Subject To Change Without Notice;
2.Design and provide products according to customer requirements.
