General Specification
♦ Material:
Frame And Impeller:Thermal Plastic UL 94V-0
♦ Lead Wires:UL Type
RED Wire Positive(+)
Black Wire Negative(-)
♦ Insulation Resistance:10MΩ Or Over With a DC250V Megger
♦ Dielectric Withstand Voltage:AC500V 1S
♦ Allowable Ambient Temperature Range:
-10℃～+70℃(Operation)
-40℃～+70℃(Storage)
| 型号 Model |
轴承类型 Bearing Type |
电压 Rated Voltage |
电压范围 Operation Voltage |
电流 Current |
转数 Speed |

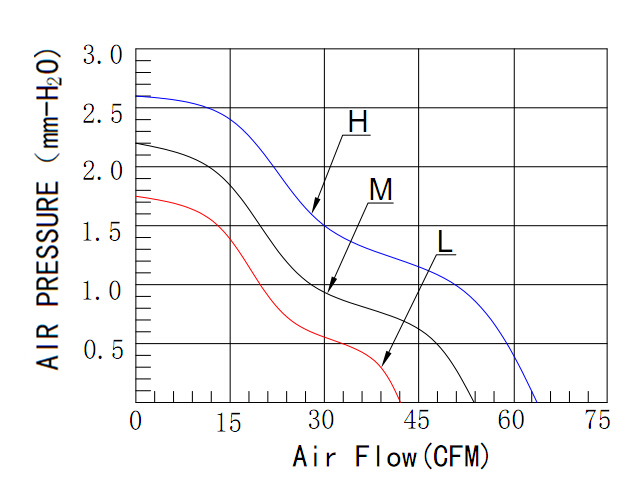

风量 Air Flow |
风压 Static Pressure |
噪音 Noise Level |
重量 Weight |
| VDC | VDC | A | RPM | CFM | mmH2O | dBA | G | ||
| ADH1425S | Sleeve | 12 | 10.8～13.2 | 0.30 | 1800 | 64.27 | 2.60 | 28.5 | 158 |
| ADM1425S | 0.20 | 1500 | 53.56 | 2.20 | 23.7 | ||||
| ADL1425S | 0.15 | 1200 | 42.85 | 1.73 | 18.9 | ||||
| ADH1425B | Ball | 0.30 | 1800 | 64.27 | 2.60 | 28.5 | |||
| ADM1425B | 0.20 | 1500 | 53.56 | 2.20 | 23.7 | ||||
| ADL1425B | 0.15 | 1200 | 42.85 | 1.73 | 18.9 | ||||
| ADH1425S | Sleeve | 24 | 21.6～26.4 | 0.20 | 1800 | 64.27 | 2.60 | 28.5 | |
| ADM1425S | 0.15 | 1500 | 53.56 | 2.20 | 23.7 | ||||
| ADL1425S | 0.08 | 1200 | 42.85 | 1.73 | 18.9 | ||||
| ADH1425B | Ball | 0.20 | 1800 | 64.27 | 2.60 | 28.5 | |||
| ADM1425B | 0.15 | 1500 | 53.56 | 2.20 | 23.7 | ||||
| ADL1425B | 0.08 | 1200 | 42.85 | 1.73 | 18.9 |
Notes:1.Specifications Subject To Change Without Notice;
2.Design and provide products according to customer requirements.
