General Specification
♦ Material:
Frame And Impeller:Thermal Plastic UL 94V-0
♦ Lead Wires:UL Type
RED Wire Positive(+)
Black Wire Negative(-)
♦ Insulation Resistance:10MΩ Or Over With a DC250V Megger
♦ Dielectric Withstand Voltage:AC500V 1S
♦ Allowable Ambient Temperature Range:
-10℃～+70℃(Operation)
-40℃～+70℃(Storage)
| 型号 Model |
轴承类型 Bearing Type |
电压 Rated Voltage |
电压范围 Operation Voltage |
电流 Current |
转数 Speed |

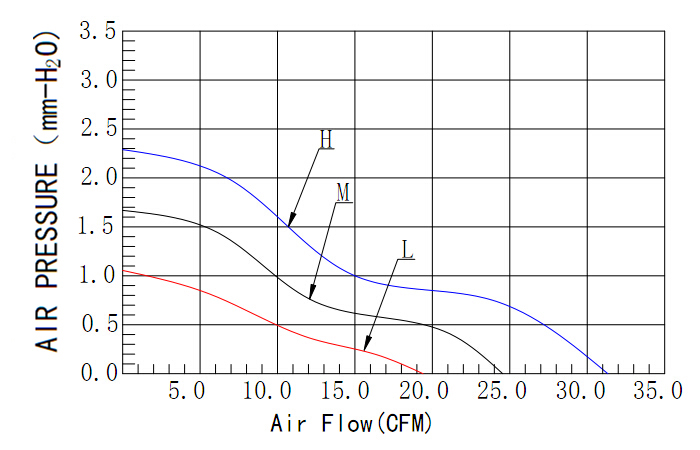

风量 Air Flow |
风压 Static Pressure |
噪音 Noise Level |
重量 Weight |
| VDC | VDC | A | RPM | CFM | mmH2O | dBA | G | ||
| ADH8015S | Sleeve | 12 | 10.8～13.2 | 0.17 | 3000 | 30.16 | 2.38 | 34.57 | 57 |
| ADM8015S | 0.12 | 2500 | 24.89 | 1.69 | 29.80 | ||||
| ADL8015S | 0.08 | 2000 | 18.99 | 1.03 | 24.15 | ||||
| ADH8015B | Ball | 0.17 | 3000 | 30.16 | 2.38 | 34.57 | |||
| ADM8015B | 0.12 | 2500 | 24.89 | 1.69 | 29.80 | ||||
| ADL8015B | 0.08 | 2000 | 18.99 | 1.03 | 24.15 | ||||
| ADH8015S | Sleeve | 24 | 21.6～26.4 | 0.11 | 3000 | 30.16 | 2.38 | 34.57 | |
| ADM8015S | 0.08 | 2500 | 24.89 | 1.69 | 29.80 | ||||
| ADL8015S | 0.05 | 2000 | 18.99 | 1.03 | 24.15 | ||||
| ADH8015B | Ball | 0.11 | 3000 | 30.16 | 2.38 | 34.57 | |||
| ADM8015B | 0.08 | 2500 | 24.89 | 1.69 | 29.80 | ||||
| ADL8015B | 0.05 | 2000 | 18.99 | 1.03 | 24.15 |
Notes:1.Specifications Subject To Change Without Notice;
2.Design and provide products according to customer requirements.
