General Specification
♦ Material:
Frame And Impeller:Thermal Plastic UL 94V-0
♦ Lead Wires:UL Type
RED Wire Positive(+)
Black Wire Negative(-)
♦ Insulation Resistance:10MΩ Or Over With a DC250V Megger
♦ Dielectric Withstand Voltage:AC500V 1S
♦ Allowable Ambient Temperature Range:
-10℃~+70℃(Operation)
-40℃~+70℃(Storage)
型号 Model |
轴承类型 Bearing Type |
电压 Rated Voltage |
电压范围 Operation Voltage |
电流 Current |
转数 Speed |
风量 Air Flow |

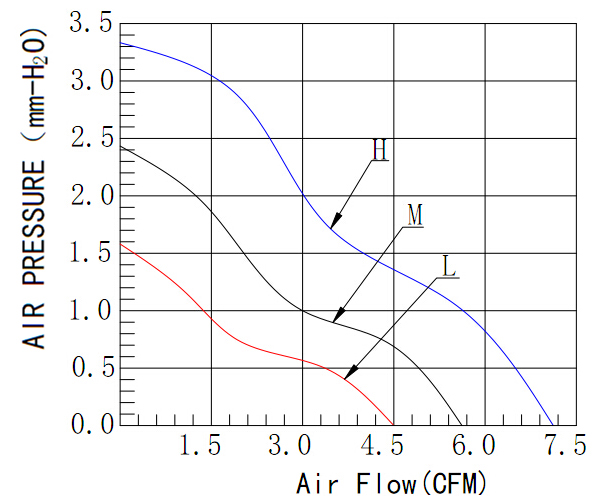

风压 Static Pressure |
噪音 Noise Level |
重量 Weight |
VDC | VDC | A | RPM | CFM | mmH2O | dBA | G | ||
ADH4510S | Sleeve | 5 | 4.5~5.5 | 0.20 | 6000 | 7.22 | 3.38 | 31.86 | 15 |
ADM4510S | 0.18 | 5000 | 5.83 | 2.42 | 27.29 | ||||
ADL4510S | 0.12 | 4000 | 4.50 | 1.57 | 22.06 | ||||
ADH4510B | Ball | 0.20 | 6000 | 7.22 | 3.38 | 31.86 | |||
ADM4510B | 0.18 | 5000 | 5.83 | 2.42 | 27.29 | ||||
ADL4510B | 0.12 | 4000 | 4.50 | 1.57 | 22.06 | ||||
ADH4510S | Sleeve | 12 | 10.8~13.2 | 0.15 | 6000 | 7.22 | 3.38 | 31.86 | |
ADM4510S | 0.10 | 5000 | 5.83 | 2.42 | 27.29 | ||||
ADL4510S | 0.08 | 4000 | 4.50 | 1.57 | 22.06 | ||||
ADH4510B | Ball | 0.15 | 6000 | 7.22 | 3.38 | 31.86 | |||
ADM4510B | 0.10 | 5000 | 5.83 | 2.42 | 27.29 | ||||
ADL4510B | 0.08 | 4000 | 4.50 | 1.57 | 22.06 |
Notes:1.Specifications Subject To Change Without Notice;
2.Design and provide products according to customer requirements.
