General Specification
♦ Material:
Frame And Impeller:Thermal Plastic UL 94V-0
♦ Lead Wires:UL Type
RED Wire Positive(+)
Black Wire Negative(-)
♦ Insulation Resistance:10MΩ Or Over With a DC250V Megger
♦ Dielectric Withstand Voltage:AC500V 1S
♦ Allowable Ambient Temperature Range:
-10℃~+70℃(Operation)
-40℃~+70℃(Storage)
型号 Model |
轴承类型 Bearing Type |
电压 Rated Voltage |
电压范围 Operation Voltage |
电流 Current |
转数 Speed |
风量 Air Flow |

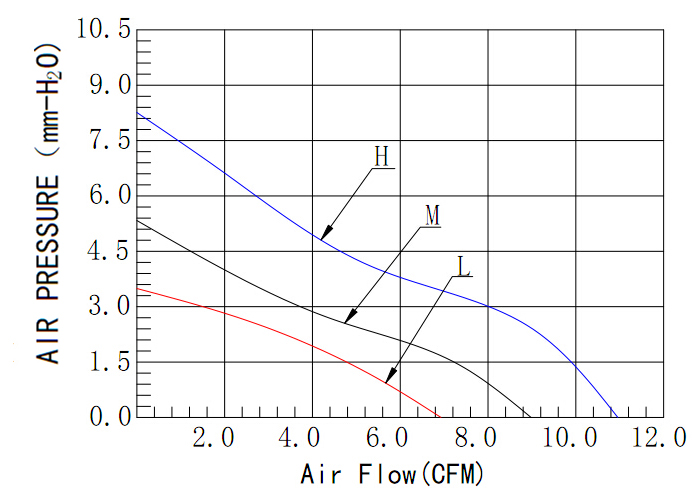

风压 Static Pressure |
噪音 Noise Level |
重量 Weight |
VDC | VDC | A | RPM | CFM | mmH2O | dBA | G | ||
ADH4028S | Sleeve | 12 | 10.8~13.2 | 0.18 | 8000 | 10.27 | 8.37 | 38.76 | 35 |
ADM4028S | 0.15 | 6500 | 8.45 | 5.70 | 32.57 | ||||
ADL4028S | 0.12 | 5000 | 6.42 | 3.27 | 25.37 | ||||
ADH4028B | Ball | 0.18 | 8000 | 10.27 | 8.37 | 38.76 | |||
ADM4028B | 0.15 | 6500 | 8.45 | 5.70 | 32.57 | ||||
ADL4028B | 0.12 | 5000 | 6.42 | 3.27 | 25.37 | ||||
ADH4028S | Sleeve | 24 | 21.6~26.4 | 0.13 | 8000 | 10.27 | 8.37 | 38.76 | |
ADM4028S | 0.08 | 6500 | 8.45 | 5.70 | 32.57 | ||||
ADL4028S | 0.05 | 5000 | 6.42 | 3.27 | 25.37 | ||||
ADH4028B | Ball | 0.13 | 8000 | 10.27 | 8.37 | 38.76 | |||
ADM4028B | 0.08 | 6500 | 8.45 | 5.70 | 32.57 | ||||
ADL4028B | 0.05 | 5000 | 6.42 | 3.27 | 25.37 |
Notes:1.Specifications Subject To Change Without Notice;
2.Design and provide products according to customer requirements.
