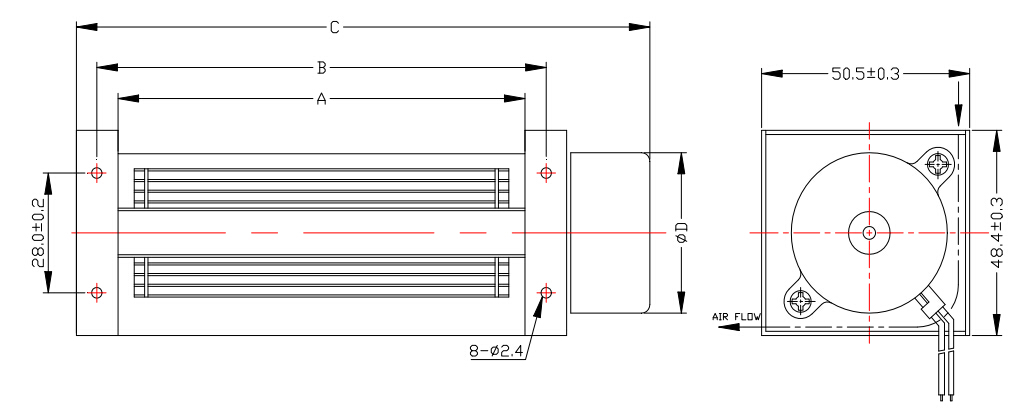

| 型号 Model | 尺寸 Size(mm) | 电压 Rated Voltage | 电流 Current | 转数 Speed | 风压 Max. Static Pressure | 风量 Maximun Air Flow | 噪音 Noise Level | 重量 Weight | ||||
| A | B | C | D | VDC | A | RPM | mmH2O | m3/min | CFM | dBA | G | |
| ADH0309X-A | 98 | 108 | 134 | 37.5 | 12 | 0.15 | 3200 | 1.9 | 0.6 | 22 | 29 | 180 |
| ADH0309X-A | 24 | 0.18 | ||||||||||
| ADH0315X-A | 160 | 170 | 196 | 37.5 | 12 | 0.16 | 3100 | 1.7 | 0.8 | 28 | 30 | 210 |
| ADH0315X-A | 24 | 0.15 | ||||||||||
| ADH0319X-A | 198 | 208 | 234 | 37.5 | 12 | 0.20 | 2900 | 1.7 | 1.0 | 35 | 31 | 230 |
| ADH0319X-A | 24 | 0.16 | ||||||||||
| ADH0329X-A | 300 | 310 | 338 | 37.5 | 12 | 0.22 | 2600 | 1.5 | 1.3 | 33 | 46 | 290 |
| ADH0329X-A | 24 | 0.20 | ||||||||||
Notes:1.Specifications Subject To Change Without Notice;
2.Design and provide products according to customer requirements.
