General Specification
♦ Material:
Frame And Impeller:Thermal Plastic UL 94V-0
♦ Lead Wires:UL Type
RED Wire Positive(+)
Black Wire Negative(-)
♦ Insulation Resistance:10MΩ Or Over With a DC250V Megger
♦ Dielectric Withstand Voltage:AC500V 1S
♦ Allowable Ambient Temperature Range:
-10℃～+70℃(Operation)
-40℃～+70℃(Storage)
♦ Life expectancy: 50,000hrs at 20°C, 2 balls, 30,000hrs at 20°C, sleeves
♦ Approvals: UL, CE and RoHS
| 型号 Model |
轴承类型 Bearing Type |
电压 Rated Voltage |
电压范围 Operation Voltage |
电流 Current |
转数 Speed |
风量 Air Flow |

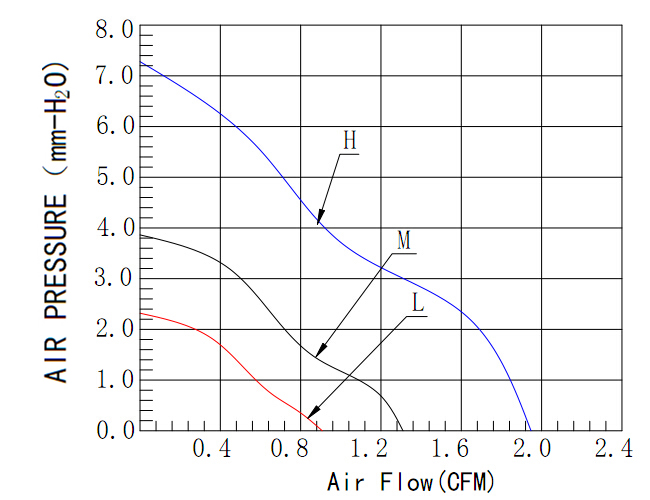

风压 Static Pressure |
噪音 Noise Level |
重量 Weight |
| VDC | VDC | A | RPM | CFM | mmH2O | dBA | G | ||
| ADH2010S | Sleeve | 5 | 4.5～5.5 | 0.20 | 18000 | 1.89 | 7.23 | 37.28 | 5.5 |
| ADM2010S | 0.15 | 12000 | 1.27 | 3.93 | 27.13 | ||||
| ADL2010S | 0.10 | 9000 | 0.85 | 2.32 | 20.55 | ||||
| ADH2010S | 12 | 10.8～13.2 | 0.15 | 18000 | 1.89 | 7.23 | 37.28 | ||
| ADM2010S | 0.10 | 12000 | 1.27 | 3.93 | 27.13 | ||||
| ADL2010S | 0.07 | 9000 | 0.85 | 2.32 | 20.55 |
Notes:1.Specifications Subject To Change Without Notice;
2.Design and provide products according to customer requirements.
