General Specification
♦ Material:
Frame And Impeller:Thermal Plastic UL 94V-0
♦ Lead Wires:UL Type
RED Wire Positive(+)
Black Wire Negative(-)
♦ Insulation Resistance:10MΩ Or Over With a DC250V Megger
♦ Dielectric Withstand Voltage:AC500V 1S
♦ Allowable Ambient Temperature Range:
-10℃～+70℃(Operation)
-40℃～+70℃(Storage)
| 型号 Model |
轴承类型 Bearing Type |
电压 Rated Voltage |
电压范围 Operation Voltage |
电流 Current |
转数 Speed |

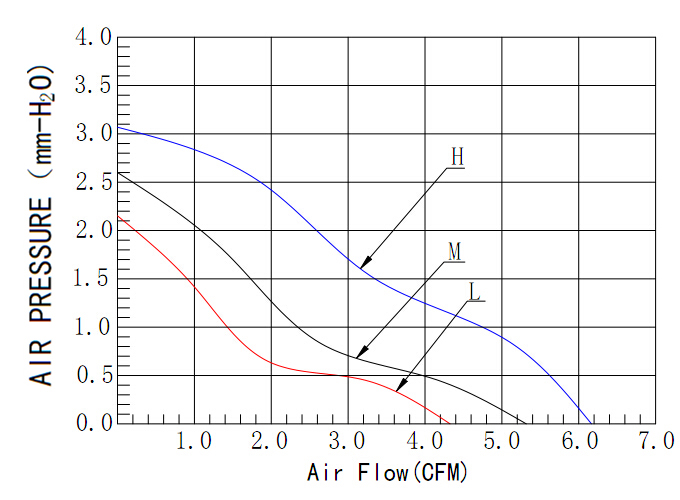

风量 Air Flow |
风压 Static Pressure |
噪音 Noise Level |
重量 Weight |
| VDC | VDC | A | RPM | CFM | mmH2O | dBA | G | ||
| ADH4007S | Sleeve | 5 | 4.5～5.5 | 0.26 | 7000 | 6.07 | 3.03 | 31.59 | 8.5 |
| ADM4007S | 0.20 | 6000 | 5.20 | 2.60 | 27.08 | ||||
| ADL4007S | 0.12 | 5000 | 4.34 | 2.17 | 22.57 | ||||
| ADH4007S | 12 | 10.8～13.2 | 0.13 | 7000 | 6.07 | 3.03 | 31.59 | ||
| ADM4007S | 0.10 | 6000 | 5.20 | 2.60 | 27.08 | ||||
| ADL4007S | 0.07 | 5000 | 4.34 | 2.17 | 22.57 |
Notes:1.Specifications Subject To Change Without Notice;
2.Design and provide products according to customer requirements.
