General specification
♦ Material:
Impeller:PBT UL 94V-0 Reinforced Plastic
Frame:Aluminium Alloy
♦ Lead Wires:UL Type
♦ Motor Protection:Impredance Protect
♦ Insulation Resistance:10MΩ Or Over With a DC500V Megger
♦ Dielectric Withstand Voltage:AC1500V 3S
♦ Allowable Ambient Temperature Range:
-10℃～+70℃(Operation)
-40℃～+70℃(Storage)
| 型号 Model |
轴承类型 Bearing Type |
电压 Rated Voltage |
频率 Fre-quency |
电流 Current |
功率 Power |
转数 Speed |
噪音 Noise Level |
风量 Air Flow |

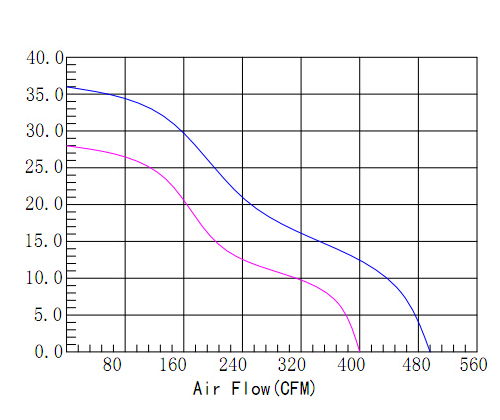

风压 Static Pressure |
重量 Weight |
|
| VAC | Hz | A | W | RPM | dBA | m3/min | CFM | mmH2O | G | ||
| AAH2260B | Ball | 115 | 50/60 | 0.42/0.46 | 50/60 | 2800/3200 | 61/66 | 11.32/12.74 | 400/450 | 28/36 | 1400 |
| AAH2260B | 0.76/0.77 | 57/58 | 2400 | 56 | 11 | 388 | 2.54 | ||||
| AAH2260B | 220/240 | 0.26/0.26 | 50/60 | 2800/3200 | 61/66 | 11.32/12.74 | 400/450 | 28/36 | |||
| AAH2260B | 0.28/0.29 | 42/38 | 2400 | 56 | 11 | 388 | 2.54 | ||||
| AAH2260B | 380 | 50 | 0.16 | 47 | 2400 | 56 | 11 | 388 | 2.54 | ||
Notes:1.Specifications Subject To Change Without Notice;
2.Design and provide products according to customer requirements.
