General specification
♦ Material:
Impeller:PBT UL 94V-0 Reinforced Plastic
Frame:Aluminium Alloy
♦ Lead Wires:UL Type
♦ Motor Protection:Impredance Protect
♦ Insulation Resistance:10MΩ Or Over With a DC500V Megger
♦ Dielectric Withstand Voltage:AC1500V 3S
♦ Allowable Ambient Temperature Range:
-10℃～+70℃(Operation)
-40℃～+70℃(Storage)
| 型号 Model |
轴承类型 Bearing Type |
电压 Rated Voltage |
频率 Fre-quency |
电流 Current |
功率 Power |
转数 Speed |
噪音 Noise Level |

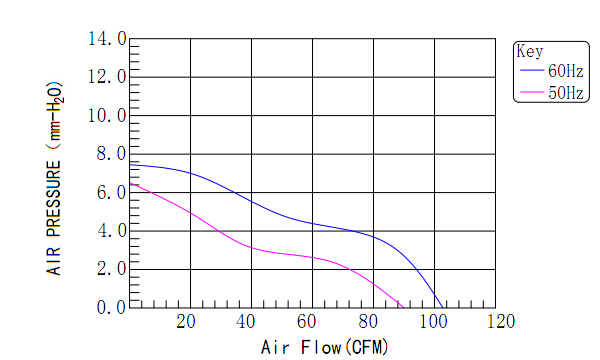

风量 Air Flow |
风压 Static Pressure |
重量 Weight |
|
| VAC | Hz | A | W | RPM | dBA | m3/min | CFM | mmH2O | G | ||
| AAH1238S | Sleeve | 115 | 50/60 | 0.22/0.18 | 21/18 | 2600/2950 | 40/45 | 2.58/3.20 | 91/113 | 6.35/7.62 | 530 |
| AAH1238B | Ball | ||||||||||
| AAH1238S | Sleeve | 220～240 | 0.12/0.11 | 20/19 | |||||||
| AAH1238B | Ball | ||||||||||
| AAH1238S | Sleeve | 220～240 | 50/60 | 0.09/0.08 | 16/15 | 2200/2500 | 37/39 | 2.03/2.25 | 72/80 | 3.56/5.33 | |
| AAH1238B | Ball | ||||||||||
| AAH1238S | Sleeve | 380 | 50 | 0.06 | 18 | 2600 | 40 | 2.58 | 91 | 6.35 | |
| AAH1238B | Ball | ||||||||||
Notes:1.Specifications Subject To Change Without Notice;
2.Design and provide products according to customer requirements.
