General Specification
♦ Material:
Frame And Impeller:Thermal Plastic UL 94V-0
♦ Lead Wires:UL Type
RED Wire Positive(+)
Black Wire Negative(-)
♦ Insulation Resistance:10MΩ Or Over With a DC250V Megger
♦ Dielectric Withstand Voltage:AC500V 1S
♦ Allowable Ambient Temperature Range:
-10℃～+70℃(Operation)
-40℃～+70℃(Storage)
| 型号 Model |
轴承类型 Bearing Type |
电压 Rated Voltage |
电压范围 Operation Voltage |
电流 Current |
转数 Speed |
风量 Air Flow |

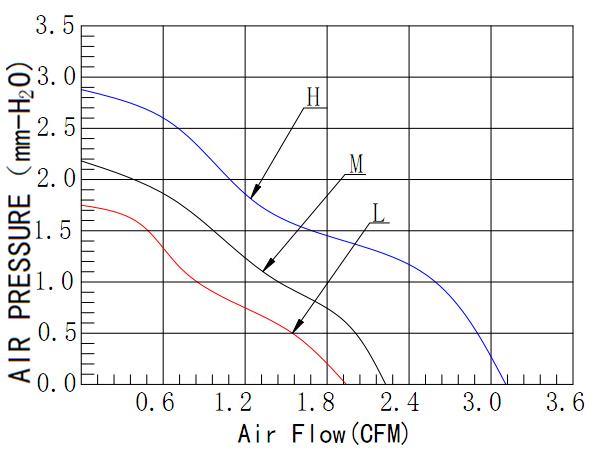

风压 Static Pressure |
噪音 Noise Level |
重量 Weight |
| VDC | VDC | A | RPM | CFM | mmH2O | dBA | G | ||
| ADH3006S | Sleeve | 5 | 4.5～5.5 | 0.20 | 8000 | 3.09 | 2.87 | 25.44 | 7 |
| ADM3006S | 0.16 | 6000 | 2.32 | 2.15 | 21.25 | ||||
| ADL3006S | 0.12 | 5000 | 1.93 | 1.79 | 20.11 | ||||
| ADH3006B | Ball | 0.20 | 8000 | 3.09 | 2.87 | 25.44 | |||
| ADM3006B | 0.16 | 6000 | 2.32 | 2.15 | 21.25 | ||||
| ADL3006B | 0.12 | 5000 | 1.93 | 1.79 | 20.11 | ||||
| ADH3006S | Sleeve | 12 | 10.8～13.2 | 0.10 | 8000 | 3.09 | 2.87 | 25.44 | |
| ADM3006S | 0.08 | 6000 | 2.32 | 2.15 | 21.25 | ||||
| ADL3006S | 0.06 | 5000 | 1.93 | 1.79 | 20.11 | ||||
| ADH3006B | Ball | 0.10 | 8000 | 3.09 | 2.87 | 25.44 | |||
| ADM3006B | 0.08 | 6000 | 2.32 | 2.15 | 21.25 | ||||
| ADL3006B | 0.06 | 5000 | 1.93 | 1.79 | 20.11 |
Notes:1.Specifications Subject To Change Without Notice;
2.Design and provide products according to customer requirements.
