General Specification
♦ Material:
Frame And Impeller:Thermal Plastic UL 94V-0
♦ Lead Wires:UL Type
RED Wire Positive(+)
Black Wire Negative(-)
♦ Insulation Resistance:10MΩ Or Over With a DC250V Megger
♦ Dielectric Withstand Voltage:AC500V 1S
♦ Allowable Ambient Temperature Range:
-10℃～+70℃(Operation)
-40℃～+70℃(Storage)
| 型号 Model |
轴承类型 Bearing Type |
电压 Rated Voltage |
电压范围 Operation Voltage |
电流 Current |
转数 Speed |
风量 Air Flow |

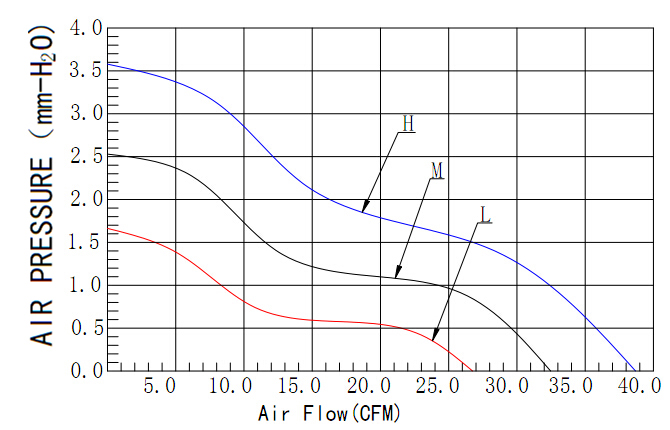

风压 Static Pressure |
噪音 Noise Level |
重量 Weight |
| VDC | VDC | A | RPM | CFM | mmH2O | dBA | G | ||
| ADH8025S | Sleeve | 12 | 10.8～13.2 | 0.17 | 3000 | 38.88 | 3.54 | 32.31 | 73 |
| ADM8025S | 0.11 | 2500 | 32.37 | 2.52 | 27.85 | ||||
| ADL8025S | 0.08 | 2000 | 25.64 | 1.64 | 22.05 | ||||
| ADH8025B | Ball | 0.17 | 3000 | 38.88 | 3.54 | 32.31 | |||
| ADM8025B | 0.11 | 2500 | 32.37 | 2.52 | 27.85 | ||||
| ADL8025B | 0.08 | 2000 | 25.64 | 1.64 | 22.05 | ||||
| ADH8025S | Sleeve | 24 | 21.6～26.4 | 0.15 | 3000 | 38.88 | 3.54 | 32.31 | |
| ADM8025S | 0.10 | 2500 | 32.37 | 2.52 | 27.85 | ||||
| ADL8025S | 0.07 | 2000 | 25.64 | 1.64 | 22.05 | ||||
| ADH8025B | Ball | 0.15 | 3000 | 38.88 | 3.54 | 32.31 | |||
| ADM8025B | 0.10 | 2500 | 32.37 | 2.52 | 27.85 | ||||
| ADL8025B | 0.07 | 2000 | 25.64 | 1.64 | 22.05 |
Notes:1.Specifications Subject To Change Without Notice;
2.Design and provide products according to customer requirements.
