General Specification
♦ Material:
Frame And Impeller:Thermal Plastic UL 94V-0
♦ Lead Wires:UL Type
RED Wire Positive(+)
Black Wire Negative(-)
♦ Insulation Resistance:10MΩ Or Over With a DC250V Megger
♦ Dielectric Withstand Voltage:AC500V 1S
♦ Allowable Ambient Temperature Range:
-10℃～+70℃(Operation)
-40℃～+70℃(Storage)
| 型号 Model |
轴承类型 Bearing Type |
电压 Rated Voltage |
电压范围 Operation Voltage |
电流 Current |
转数 Speed |
风量 Air Flow |

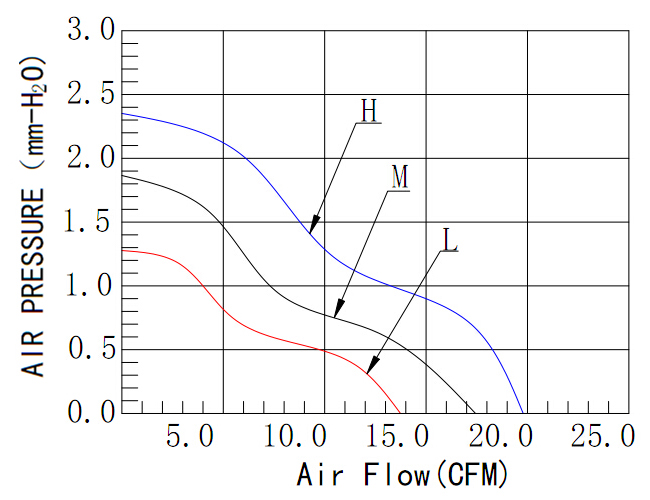

风压 Static Pressure |
噪音 Noise Level |
重量 Weight |
| VDC | VDC | A | RPM | CFM | mmH2O | dBA | G | ||
| ADH6015S | Sleeve | 5 | 4.5～5.5 | 0.26 | 4000 | 19.83 | 2.35 | 34.63 | 33 |
| ADM6015S | 0.20 | 3500 | 17.58 | 1.85 | 30.69 | ||||
| ADL6015S | 0.14 | 3000 | 14.67 | 1.27 | 28.54 | ||||
| ADH6015B | Ball | 0.26 | 4000 | 19.83 | 2.35 | 34.63 | |||
| ADM6015B | 0.20 | 3500 | 17.58 | 1.85 | 30.69 | ||||
| ADL6015B | 0.14 | 3000 | 14.67 | 1.27 | 28.54 | ||||
| ADH6015S | Sleeve | 12 | 10.8～13.2 | 0.15 | 4000 | 19.83 | 2.35 | 34.63 | |
| ADM6015S | 0.13 | 3500 | 17.58 | 1.85 | 30.69 | ||||
| ADL6015S | 0.11 | 3000 | 14.67 | 1.27 | 28.54 | ||||
| ADH6015B | Ball | 0.15 | 4000 | 19.83 | 2.35 | 34.63 | |||
| ADM6015B | 0.13 | 3500 | 17.58 | 1.85 | 30.69 | ||||
| ADL6015B | 0.11 | 3000 | 14.67 | 1.27 | 28.54 |
Notes:1.Specifications Subject To Change Without Notice;
2.Design and provide products according to customer requirements.
