General Specification
♦ Material:
Frame And Impeller:Thermal Plastic UL 94V-0
♦ Lead Wires:UL Type
RED Wire Positive(+)
Black Wire Negative(-)
♦ Insulation Resistance:10MΩ Or Over With a DC250V Megger
♦ Dielectric Withstand Voltage:AC500V 1S
♦ Allowable Ambient Temperature Range:
-10℃～+70℃(Operation)
-40℃～+70℃(Storage)
| 型号 Model |
轴承类型 Bearing Type |
电压 Rated Voltage |
电压范围 Operation Voltage |
电流 Current |
转数 Speed |

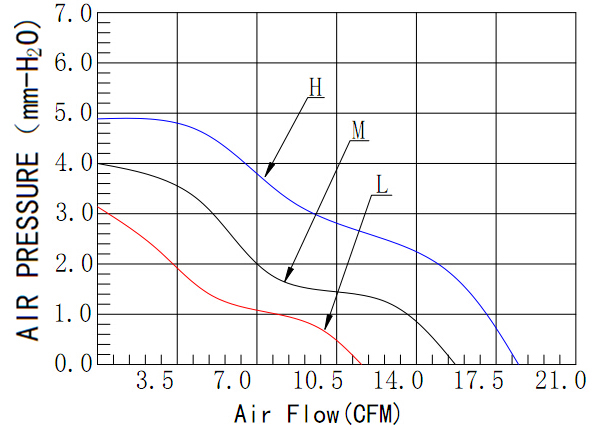

风量 Air Flow |
风压 Static Pressure |
噪音 Noise Level |
重量 Weight |
| VDC | VDC | A | RPM | CFM | mmH2O | dBA | G | ||
| ADH5020S | Sleeve | 5 | 4.5～5.5 | 0.32 | 5500 | 18.33 | 4.89 | 35.20 | 32 |
| ADM5020S | 0.26 | 4500 | 14.99 | 4.00 | 28.80 | ||||
| ADL5020S | 0.18 | 3500 | 11.66 | 3.11 | 22.40 | ||||
| ADH5020B | Ball | 0.32 | 5500 | 18.33 | 4.89 | 35.20 | |||
| ADM5020B | 0.26 | 4500 | 14.99 | 4.00 | 28.80 | ||||
| ADL5020B | 0.18 | 3500 | 11.66 | 3.11 | 22.40 | ||||
| ADH5020S | Sleeve | 12 | 10.8～13.2 | 0.20 | 5500 | 18.33 | 4.89 | 35.20 | |
| ADM5020S | 0.15 | 4500 | 14.99 | 4.00 | 28.80 | ||||
| ADL5020S | 0.09 | 3500 | 11.66 | 3.11 | 22.40 | ||||
| ADH5020B | Ball | 0.20 | 5500 | 18.33 | 4.89 | 35.20 | |||
| ADM5020B | 0.15 | 4500 | 14.99 | 4.00 | 28.80 | ||||
| ADL5020B | 0.09 | 3500 | 11.66 | 3.11 | 22.40 |
Notes:1.Specifications Subject To Change Without Notice;
2.Design and provide products according to customer requirements.
