General Specification
♦ Material:
Frame And Impeller:Thermal Plastic UL 94V-0
♦ Lead Wires:UL Type
RED Wire Positive(+)
Black Wire Negative(-)
♦ Insulation Resistance:10MΩ Or Over With a DC250V Megger
♦ Dielectric Withstand Voltage:AC500V 1S
♦ Allowable Ambient Temperature Range:
-10℃~+70℃(Operation)
-40℃~+70℃(Storage)
型号 Model |
轴承类型 Bearing Type |
电压 Rated Voltage |
电压范围 Operation Voltage |
电流 Current |
转数 Speed |
风量 Air Flow |

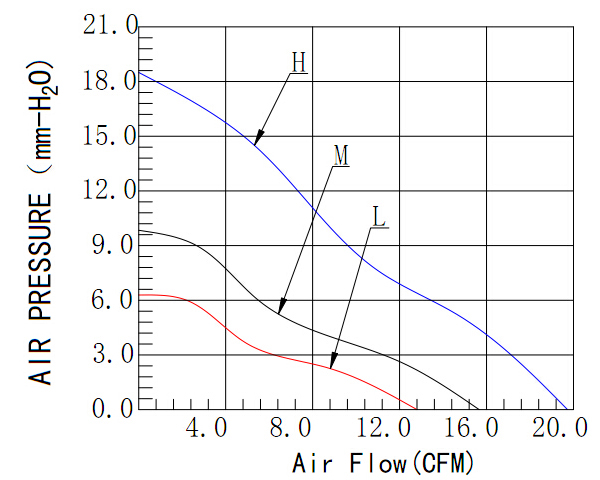

风压 Static Pressure |
噪音 Noise Level |
重量 Weight |
VDC | VDC | A | RPM | CFM | mmH2O | dBA | G | ||
ADH9330S | Sleeve | 12 | 10.8~13.2 | 0.45 | 3000 | 19.20 | 18.80 | 45.00 | 155 |
ADM9330S | 0.30 | 2500 | 15.80 | 10.00 | 42.00 | ||||
ADL9330S | 0.20 | 2100 | 13.00 | 6.30 | 38.00 | ||||
ADH9330B | Ball | 0.45 | 3000 | 19.20 | 18.80 | 45.00 | |||
ADM9330B | 0.30 | 2500 | 15.80 | 10.00 | 42.00 | ||||
ADL9330B | 0.20 | 2100 | 13.00 | 6.30 | 38.00 | ||||
ADH9330S | Sleeve | 24 | 21.6~26.4 | 0.35 | 3000 | 19.20 | 18.80 | 45.00 | |
ADM9330S | 0.15 | 2500 | 15.80 | 10.00 | 42.00 | ||||
ADL9330S | 0.10 | 2100 | 13.00 | 6.30 | 38.00 | ||||
ADH9330B | Ball | 0.35 | 3000 | 19.20 | 18.80 | 45.00 | |||
ADM9330B | 0.15 | 2500 | 15.80 | 10.00 | 42.00 | ||||
ADL9330B | 0.10 | 2100 | 13.00 | 6.30 | 38.00 |
Notes:1.Specifications Subject To Change Without Notice;
2.Design and provide products according to customer requirements.
