General Specification
♦ Material:
Frame And Impeller:Thermal Plastic UL 94V-0
♦ Lead Wires:UL Type
RED Wire Positive(+)
Black Wire Negative(-)
♦ Insulation Resistance:10MΩ Or Over With a DC250V Megger
♦ Dielectric Withstand Voltage:AC500V 1S
♦ Allowable Ambient Temperature Range:
-10℃～+70℃(Operation)
-40℃～+70℃(Storage)
| 型号 Model |
轴承类型 Bearing Type |
电压 Rated Voltage |
电压范围 Operation Voltage |
电流 Current |
转数 Speed |

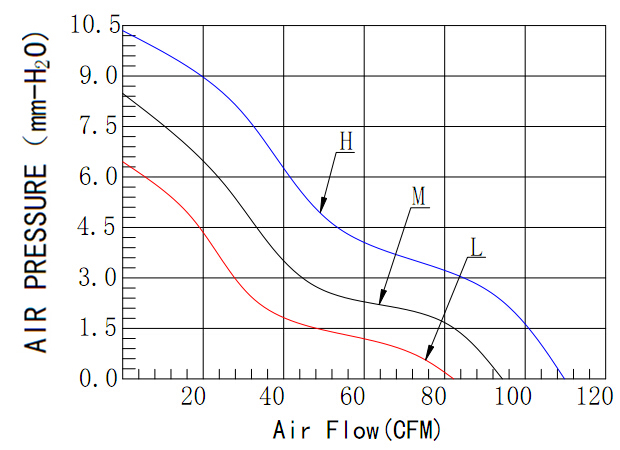

风量 Air Flow |
风压 Static Pressure |
噪音 Noise Level |
重量 Weight |
| VDC | VDC | A | RPM | CFM | mmH2O | dBA | G | ||
| ADH1232S | Sleeve | 12 | 10.8～13.2 | 0.60 | 3500 | 112.37 | 4.70 | 29.32 | 230 |
| ADM1232S | 0.50 | 3000 | 96.32 | 2.56 | 24.64 | ||||
| ADL1232S | 0.32 | 2500 | 80.26 | 1.15 | 21.05 | ||||
| ADH1232B | Ball | 0.60 | 3500 | 112.37 | 4.70 | 29.32 | |||
| ADM1232B | 0.50 | 3000 | 96.32 | 2.56 | 24.64 | ||||
| ADL1232B | 0.32 | 2500 | 80.26 | 1.15 | 21.05 | ||||
| ADH1232S | Sleeve | 24 | 21.6～26.4 | 0.40 | 3500 | 112.37 | 4.70 | 29.32 | |
| ADM1232S | 0.30 | 3000 | 96.32 | 2.56 | 24.64 | ||||
| ADL1232S | 0.20 | 2500 | 80.26 | 1.15 | 21.05 | ||||
| ADH1232B | Ball | 0.40 | 3500 | 112.37 | 4.70 | 29.32 | |||
| ADM1232B | 0.30 | 3000 | 96.32 | 2.56 | 24.64 | ||||
| ADL1232B | 0.20 | 2500 | 80.26 | 1.15 | 21.05 |
Notes:1.Specifications Subject To Change Without Notice;
2.Design and provide products according to customer requirements.
